Introduction:With world going through major revolution of energy sourcing, understanding consumer required backup time and complexity of integration in systems, Sacred Sun compromises series specially designed for residential, commercial,telecom and many similar applications which use DC-AC power. This series ranges from 300W-6KW. By implementing projects of respective series, Sacred Sun guarantees a mature product for customers.
Features:
●300W-6KW AC solutions delivers constant power for household with less stable grid power supply.
●Battery built in or detached design allow minimum space occupoed.
●The most cost-effective hybrid solutions reduce substantially the bill to buy grid power.
●Roof mounted PV will supply shelters to keep good temperature in the room.
●Bigger capacity drives more applications, from LEDs, cookers, to AC and refrigerator.
Especially for the overall solution of lithium batteries, we provide standardized and customized product solutions to meet customer needs.
Residential Energy Storage System (ESS) solutions are well suited for on-grid and off-grid applications, DC and AC coupled systems, whole-home or partial-home backup power.
Residential ESS adopts high-efficiency systematic design and integrates all subsystems such as photovoltaic power generation unit, energy storage unit, and inverter unit. The energy storage unit adopts a standardized energy storage module composed of deep cycle LFP batteries or lead-carbon batteries. Multiple energy storage modules can be connected to the system in parallel, and the system capacity can be expanded to meet the diverse needs of different applications.
Whole backup system:

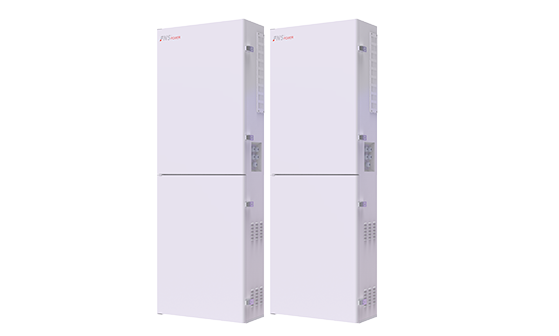

Gripline G5-10 All-in-one (EU & Australia Only), is a fully integrated residential energy storage system. It includes 9.6kWh lithium iron phosphate batteries and a 5KW split phase hybrid solar/battery inverter controlled by intelligent software. The Gripline G5-10 is specifically designed for homeowners to protect against blackouts and to reduce peak-time charges. An intelligent user-friendly online APP is available, and can be accessed from anywhere to provide analytics and insight on the solar production, load consumption, and battery SOC.
Features
• Rated AC Output: 5000W
• Grid type: 230V/240V single phase,50Hz
• Max DC Input Power: 6500W MPPT Charger: 2 MPPT Battery Voltage: 48V
• Nominal Energy: 9.6 kWh (expand to 100kWh)
• Dimension: 645*272*1600mm
• Cycle life : 4000@80% DOD 0.5C
• Warranty: 10 years limited
• Certificate: UL1642, UL1973, UL9540A, IEC62619, UN38.3, UL1741, IEEE1547, AS4777, RULE21, VDE0126.
• Communication: CAN / RS485
• Protection Class: IP54
• Remote control and monitoring : Web-based and Mobile App
• DC Coupling or AC Coupling system
• Automatically detects grid outages and transitions your home to backup power
• Automatic Generator start -up
Benefits
• Utility Bill Savings
• Eligible for investment tax credits (ITC）& incentives
• Designed to guarantee a reliable and safe system
• Energy Independence
• Manage with Ease
• Eco-Friendly and low carbon footprint .
Datasheet: All-in-one 5KW + 9.6kWh ESS
Gripline G6-10-US All-in-one (US), is a fully integrated residential energy storage system. It includes 9.6kWh lithium iron phosphate batteries and a 6KW split phase hybrid solar/battery inverter controlled by intelligent software. Gripline G6-10-US is the smart home battery energy storage system specially designed for homeowners to protect against blackouts and reduce peak-time charges. An intelligent user-friendly APP is available and can be accessed from anywhere to provide analytics and insight on solar production, load consumption, and battery SOC.
Features
• Rated AC Output: 6000W
• Grid type: 120V/240V split phase,60Hz
• Max DC Input Power: 8000W MPPT Charger: 2 MPPT Battery Voltage: 48V
• Nominal Energy: 9.6 kWh (expand to 100kWh)
• Dimension: W25″×D10.5″×H73″
• Cycle life : 6000@80% DOD 0.5C
• Warranty: 10 years limited
• Certificate: UL1642, UL1973,IEC62619, UN38.3, UL1741SA, RULE21, CEC, UL9540A
• Communication: Canbus / RS485
• Protection: NEMA 3S / IP54 Rated
• Remote control and monitoring : Web-based and Mobile App
• DC Coupling or AC Coupling system
• Automatically detects grid outages and transitions your home to backup power
• Automatic Generator start -up
Benefits
• Utility Bill Savings
• Eligible for investment tax credits (ITC）& incentives
• Designed to guarantee a reliable and safe system
• Energy Independence
• Manage with Ease
• Eco-Friendly and low carbon footprint .
Datasheet: All-in-one 6kW + 9.6kWh ESS (US)

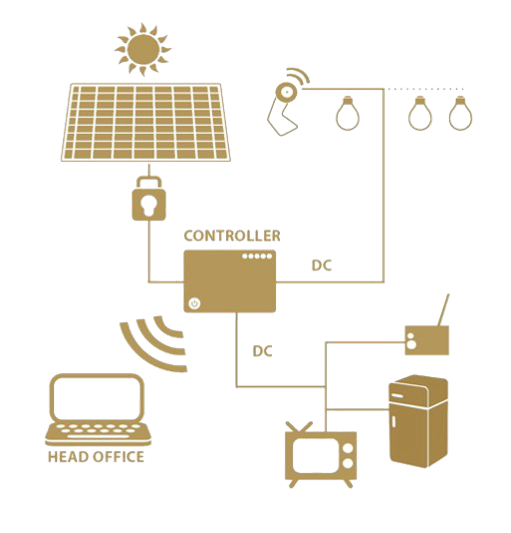

Introduction:The solution can be applied to the centralized power supply in remote areas without mains supply, adopt the renewable energy source wind and sunlight to generate power and battery is used for energy storage to achieve continuous power supply.
Features
●The PV modules array adopts modular design, easily to increase capacity.
●Energy storage battery chooses the special battery developed by us aiming at the new energy application, the cycling performance is good under partial state of
charge, and operation environment temperature is wide.
●Serialized off-grid controllers, inverters, meet the customers’ requirement for different applications.
●Aiming at the characteristics of off grid power plant, our company independently developed monitoring system applied in off-grid power plant.
Introduction:This solution can be applied to distributed generation, off-grid generation, island isolated grid and other application fields, to achieve large-scale application of Wind, Solar and other renewable energy sources and supplying power with high reliability and performance.
Features
●Adopting micro-grid structure to achieve large-scale system building of Wind-Solar-Energy storage hybrid power plant, the system can be connected to the large grid or build grid network independently and run alone.
●Wind-Solar-Energy storage hybrid power plant reduces the dependence on fossil fuel, decrease carbon emission efficiently; it is beneficial for the environment protection and promotes harmony between man and nature.
●Adopting the lithium ion battery, lead-acid battery, FCP lead-carbon battery etc. different types of batteries hybrid energy storage structure, on the basis of controlling the system cost, give full play to the technological characteristics of different types of energy storage batteries
●Adopting the innovative technology to achieve Wind-Solar-Energy storage hybrid power plant builds the grid independently, the DG is not used as the voltage source (just used as backup power source) to reduce the energy consumption.
Introduction:Energy storage power station has been widely used in peak load and power regulation, cooperation with the thermal power plant output, as well as to meet the requirements of emergency power supply within a small range. Container type modular storage system as a form of energy storage power station, high efficiency space utility, convenient installation and transportation, station completion cycle is short, strong environment adaptability, high intelligence and many other advantages, has been widely applied in various fields of electric power, industrial, commercial and others.
Features:
●High modular degree, simple structure, convenient for transportation, installation and maintenance;
●According to the properties of the selected batteries, choose the specialized Intelligent BMS;
●The system is equipped with local and remote monitor system, implementing real-time online control;
●Bilingual contrast
●Adopt air cooling mode, optimize the air distribution, implement intelligent control, save temperature control energy consumption, temperature field is uniform ;
●With complete safety protection measures to ensure operation personnel and energy storage system safe and work reliably.
●As per the customer requirement and load character provide the custom design solution,
●Base on the system requirement, adopt the specialized energy storage battery Lead acid, Gel, Lead carbon or lithium ion battery, configure energy storage units flexibly;
Especially for the overall solution of lithium batteries, we provide standardized and customized product solutions to meet customer needs.
C&I ESS use the most reliable and mature lithium iron phosphate technology (LiFePO4), and the modular design of these systems can accommodate specific dimensions and capacities from 50kWh to 2MWh+. For commercial and industrial energy storage applications, our high voltage battery pack with customer specific voltage, capacity and power output supports greater control and reliability to achieve peak shaving, load shifting, emergency back-up, optimization of renewable generation and demand response functions. HV battery energy storage system helps the energy consumers by actively managing the timing and profile of their usage. It reduces energy costs and makes the system more resilient while improving the overall safety, efficiency, reliability and power availability of their system.
· Peak Shaving
· Renewable Integration
· Backup Power
· Load Shifting/ Time of Use
· Optimization of Solar Self-consumption
· Micro-Grid Solutions
· EV Charging Support
· Demand Response
· Demand Charge Saving
Demand charges can account for up to 50% of your electricity bill, based on the 15-minute spikes in usage each month. ESS systems can reduce or eliminate peak demand charges
· Load Shifting for Time-of-use Savings
Store low-cost power when prices are lowest and consume it at times when electricity prices and utility rates are highest.
· Backup Power
Storage system can provide backup power to your critical facility for emergency operations in the event of a grid outage.
· Solar Self-consumption Priority
Storage energy generated by solar or wind to maximize use of renewables and offset using energy from the grid during peak times
· Microgrids and Off-Grid Applications
Create energy resiliency for mission-critical loads on-grid while also bringing power to areas where the grid is not available or prohibitively expensive
· Demand response programs
Discharge instantly in response to signals from a demand response administrator to alleviate peaks in system load.
· Modular Design and Easy Scalability
Each module is 51.2V 100Ah with a maximum of 15 modules in Series up to 768VDC, and in parallel up to 2MWh.
· Highest level of Safety and Reliability
Our modules have passed more than 30+ rigorous safety and extreme tests by NRTL. Our three tier BMS, protects the module from cell to system.
· Competitive Cost and Higher ROI
FNS Power, subsidiary of Sacred Sun, is a one-stop Manufacturer and Supplier from the modular cell to the complete system. This keeps our prices very competitive and enables a greater ROI for the installer.
· Compatible with leading PCS , Inverter and EMS partners
We use the standard RS485, CAN or DO communication protocol, and directly communicates to the PCS or through the EMS
· Real-Time Monitoring and Response
24/7 panoramic online monitoring and multilevel emergency response strategies is standard on all modular systems
|
Parameters |
||
|
System Type |
ESS-20H-1229kWh |
ESS-40H-2765kWh |
|
Nominal Voltage (V) |
768 |
768 |
|
Voltage Range (V) |
627～864 |
627～864 |
|
Rated Capacity (Ah) |
1600 |
3600 |
|
Rated Energy (kWh) |
1229 |
2765kWh |
|
Standard Charge and Discharge Power (KW) |
630kW |
1250kW |
|
Cycle Life (25℃,0.5C/0.5C,80%DOD) |
>4000 |
>4000 |
|
Cooling Method |
Air Conditioning |
Air Conditioning |
|
Operating Temperature (℃) |
-20℃～50℃ |
-20℃～50℃ |
|
Operating Humidity |
<95%R.H |
<95%R.H |
|
Size (L*W*H,mm) |
6096×2438×2896 |
12192×2438×2896 |
|
Protection Class |
IP54 |
IP54 |
