Introduction

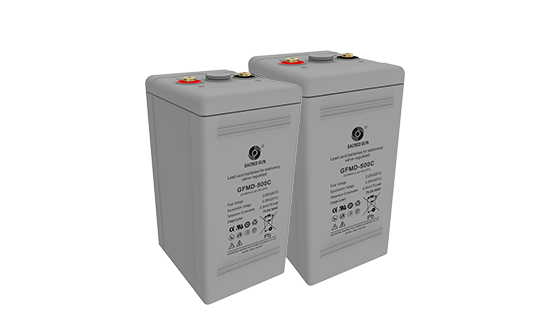

Sacred Sun GFMD-C series Lead acid batteries adopts the latest AGM technology, patented grid structure design, and specialized active material formula, which improves the high current discharge performance and charging acceptance ability of the battery, making it very suitable for the requirements of high current impulse discharge. The product series is widely used in power plant DC power supply and substation DC power supply.

Benifits

● Long life according to EUROBAT Classification

● High discharge performance

● 99%+ gas recombination efficiency

● Maximum charge efficienc

● Low self-discharge rate

● Horizontal installation

Applications

● Power plant DC power supply

● Power system

● Substation DC power supply.

● Emergency power

Specification

PDF Battery Type Nominal
Voltage
(V)

Nominal Capacity

/(Ah,25 ℃)

Dimension

(mm)

 Weight
( kg)		 IR
(mohm,
25℃)

C10

1.8VpC

C3

1.8VpC

 L W H TH
GFMD-100C 2 100 75 174.5 67 204.5 212.5 5.3 0.77
GFMD-150C 2 150 112.5 208 110 242 260 11.1 0.7
GFMD-200C 2 200 150 98.5 174 348.5 357.5 13.6 0.56
GFMD-300C 2 300 225 141 174 348.5 357.5 19.4 0.42
GFMD-400C 2 400 300 175 174 348.5 357.5 24.6 0.34
GFMD-500C 2 500 375 213.5 174 348.5 357.5 30.1 0.32
GFMD-600C 2 600 450 252 175 348.5 357.5 36.3 0.33
GFMD-800C 2 800 600 350 173 388 347 49.2 0.34
GFMD-1000C 2 1000 750 430 173 388 347 60.5 0.31
GFMD-1200C 2 1200 900 510 175 388 347 72.7 0.32
GFMD-1500C 2 1500 1125 318 341 341 351 88.3 0.31
GFMD-2000C 2 2000 1500 433 342 341 351 121 0.33
GFMD-2500C 2 2500 1875 629 346 341 351 157.5 0.33
GFMD-3000C 2 3000 2250 629 346 341 351 177 0.32

*Products specifications described herein are subject to change without prior notification.
